Description

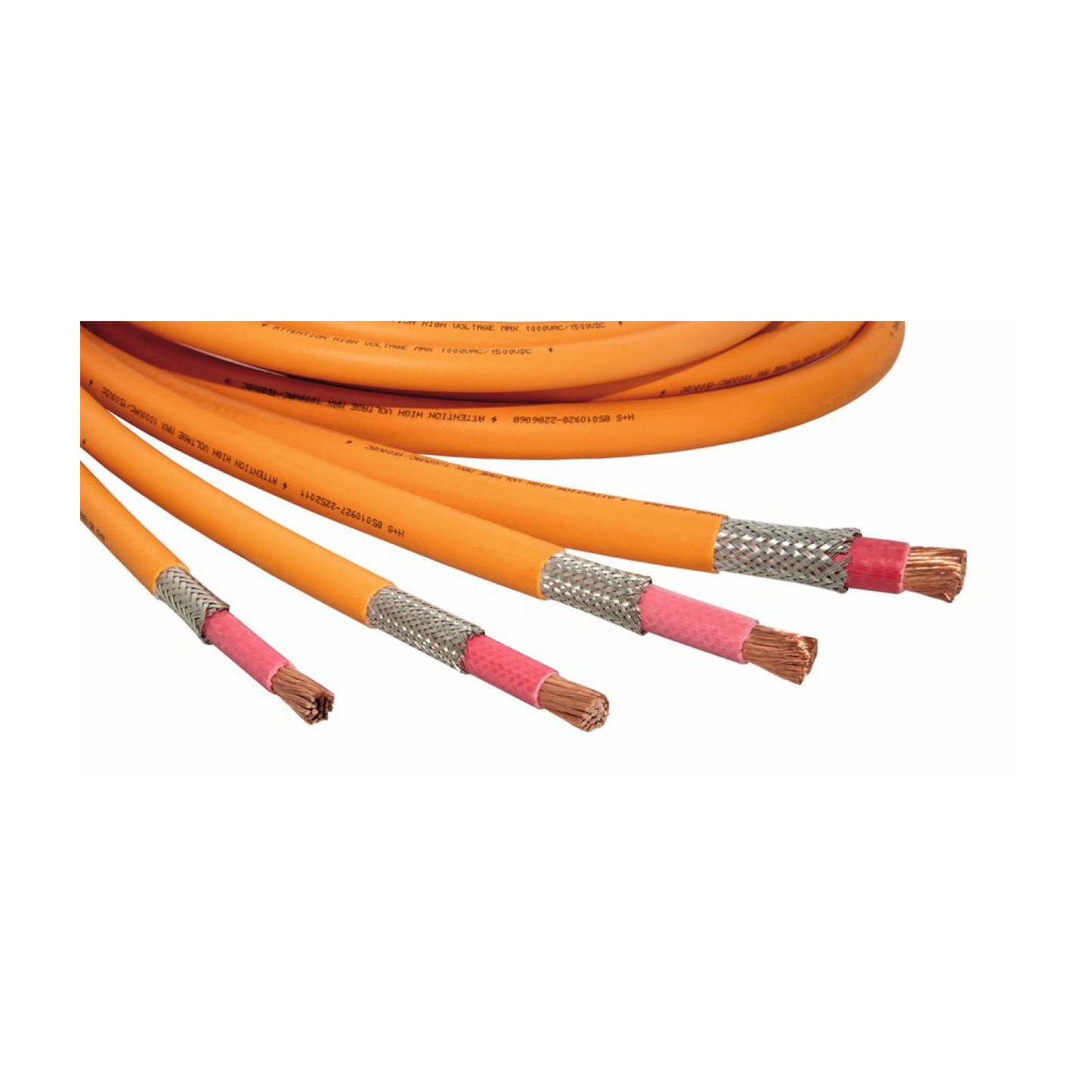

Huber+Suhner RADOX 155S FLEX has excellent resistance to high and low temperature, ozone, UV and weathering resistance, is resistant to pressure at high temperature, motor oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder iron resistant, easy to strip and process. All materials are free from lead, mercury, cadmium and chrome VI.

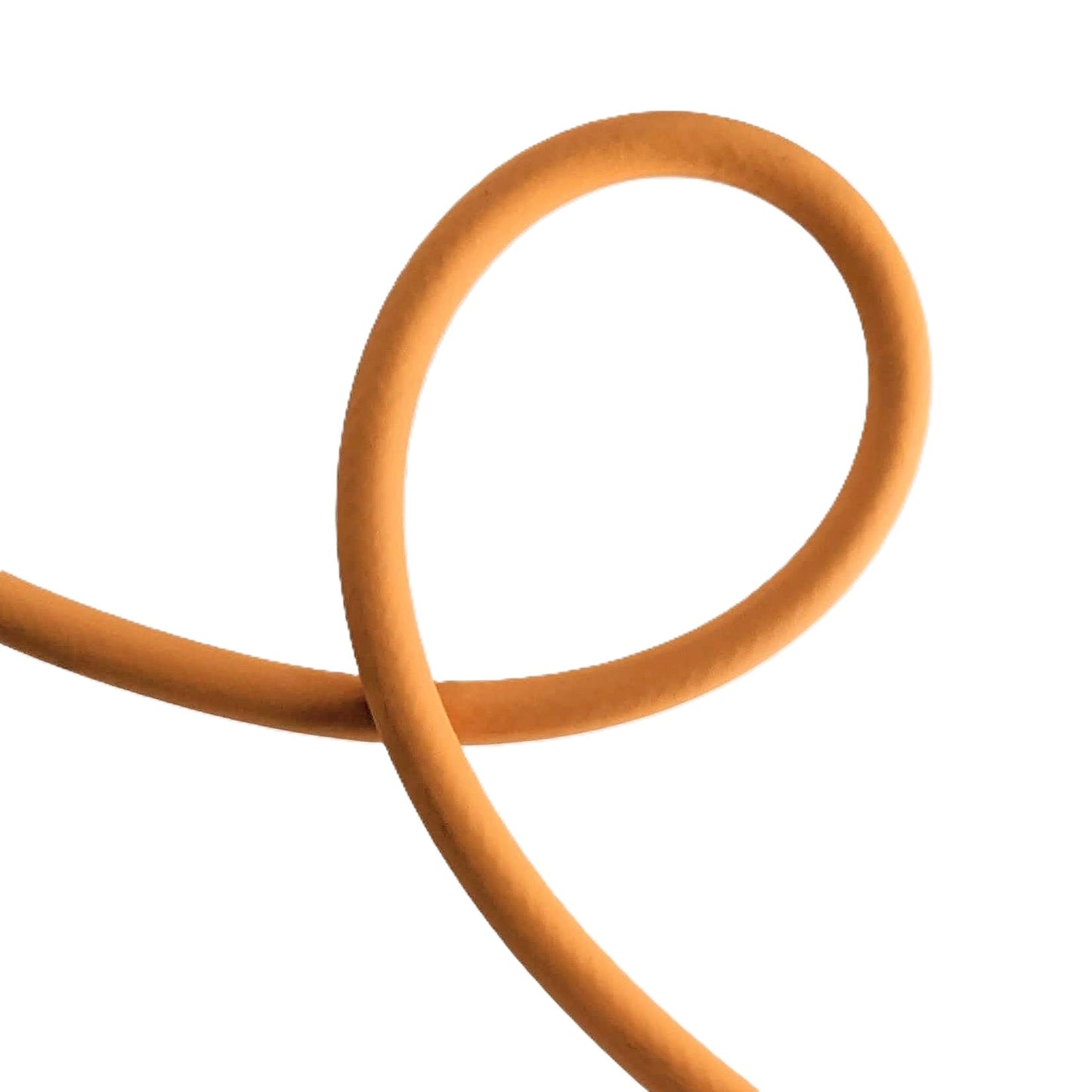

The FLEX version has a conductor made up of a larger number of smaller strands, making the overall cable more flexible.
Features
- High abrasion resistance
- High temperature resistance
- UV and ozone resistance
- Flame-retardant
- Highly Flexible and smooth
- Bend radius: 3x for static and 5x for dynamic applications
Datasheets
Specifications
- ISO 6722-1 class D / ISO 19642-9 class D
- 2000/53/EG (EU-directive on end of life vehicles) / 2011/65/EU (RoHS)
- FHLR4GC13X
- This 120mm2 cable is roughly 12% larger than 4/0AWG.
Connector Fit
- Amphenol PowerLok 500 G2
- Amphenol ExcelMate Max HVSL1400
- TE PowerTube HVP-HD1400
Want to check fitment with a connector not listed above? Contact us.
| Specification | Data |
|---|---|
| Brand | HUBER+SUHNER |
| # of Conductors | 1 |
| Armor Type | NONE |
| Color | ORANGE |
| Conductor Metal | BARE COPPER |
| Conductor Shielding Type | SHIELDED |
| Conductor Type | STRANDED |
| Gauge Size | 120MM2 |
| Insulation Material | RADOX 155 |
| Jacket Material | RADOX Elastomer S |
| Overall Shielding Type | TIN PLATED COPPER BRAID |
| Specification(s) | ISO 19642-9 CLASS D, ISO 6722-1 CLASS D |
| Stranding | 3538X0.21 |
| Temperature | 50C |
| Voltage | 1/1.5kV |
