Description

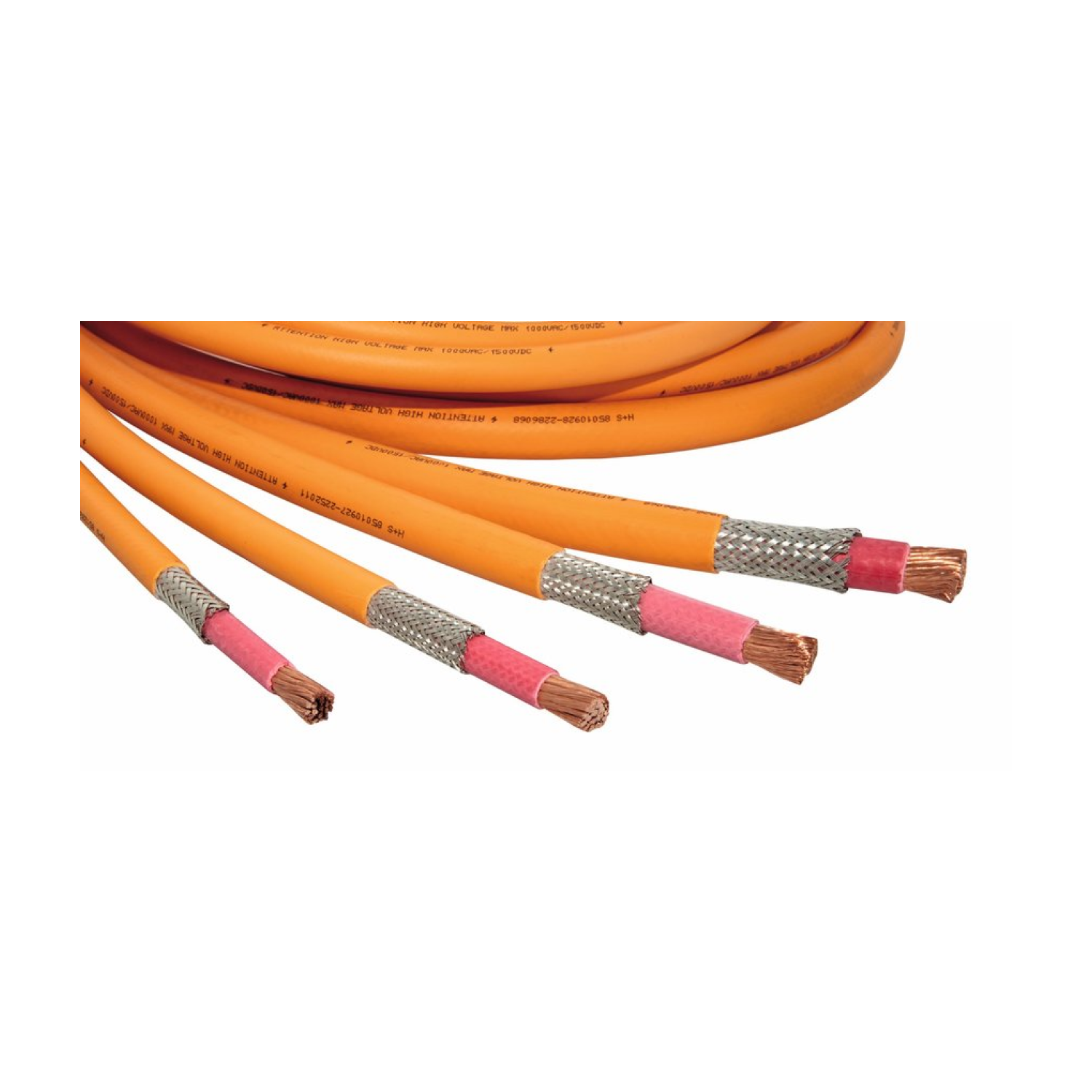

Huber+Suhner RADOX 155S has excellent resistance to high and low temperature, ozone, UV and weathering resistance, is resistant to pressure at high temperature, motor oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder iron resistant, easy to strip and process. All materials are free from lead, mercury, cadmium and chrome VI.
Features
- High abrasion resistance
- High temperature resistance
- UV and ozone resistance
- Flame-retardant
- Flexible and smooth
- Bend radius: 4x for static and 6x for dynamic applications
Datasheets
Specifications
- ISO 6722-1 class D / ISO 19642-9 class D
- 2000/53/EG (EU-directive on end of life vehicles) / 2011/65/EU (RoHS)
- FHLR91XC13X
- This 10mm2 cable is roughly 20% larger than 8AWG.
10mm2 Connector Fit
- Amphenol PowerLok 60 G2
- Amphenol Powerlok 4.0 G1
- Amphenol ExcelMate Eco HVSL362
- Amphenol ePowerLite
Want to check fitment with a connector not listed above? Contact us.
10mm2 to AWG
10mm is closest to AWG 8. AWG 8 is actually 8.36mm2, so our 10mm2 represents a roughly 20% larger conductor. Be sure to take this into account when sizing connectors. Look up other sizes in our conversion chart.
| Specification | Data |
|---|---|
| Brand | HUBER+SUHNER |
| # of Conductors | 1 |
| Armor Type | NONE |
| Color | ORANGE |
| Conductor Metal | BARE COPPER |
| Conductor Shielding Type | SHIELDED |
| Conductor Type | STRANDED |
| Gauge Size | 10MM2 |
| Insulation Material | RADOX 155 |
| Jacket Material | RADOX Elastomer S |
| Overall Shielding Type | TIN PLATED COPPER BRAID |
| Specification(s) | ISO 19642-9 CLASS D, ISO 6722-1 CLASS D |
| Stranding | 78x0.41 |
| Temperature | 150C |
| Voltage | 1/1.5kV |
