Description

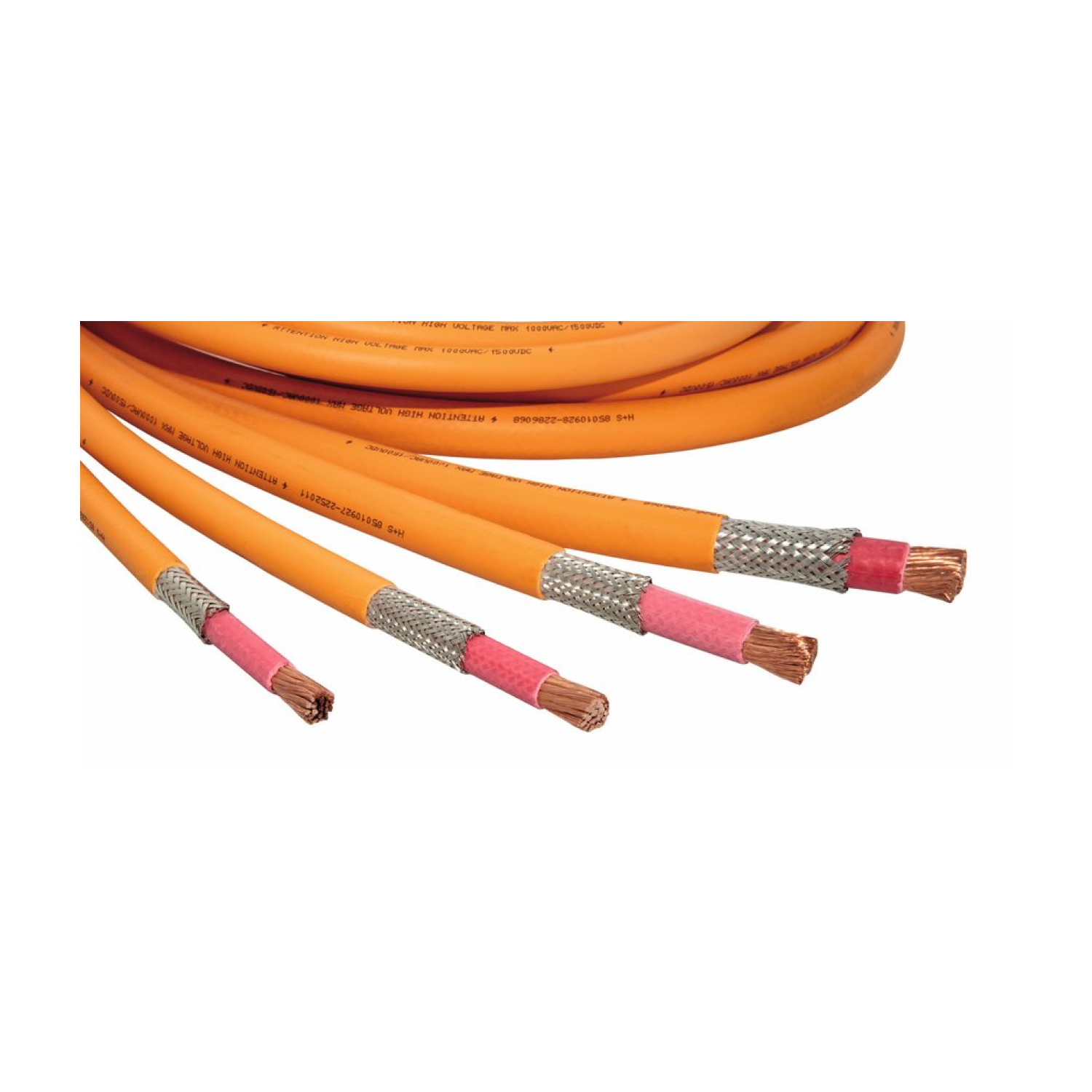

Huber+Suhner RADOX 155S has excellent resistance to high and low temperature, ozone, UV and weathering resistance, is resistant to pressure at high temperature, motor oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder iron resistant, easy to strip and process. All materials are free from lead, mercury, cadmium and chrome VI.
Features
- High abrasion resistance
- High temperature resistance
- UV and ozone resistance
- Flame-retardant
- Flexible and smooth
- Bend radius: 4x for static and 6x for dynamic applications
Datasheet
Huber and Suhner RADOX 155S Datasheet
Specifications
- ISO 6722-1 class D / ISO 19642-9 class D
- 2000/53/EG (EU-directive on end of life vehicles) / 2011/65/EU (RoHS)
- FHLR91XC13X
- This 4mm2 cable is roughly 21% larger than 12AWG.
Connector Fit
- Amphenol PowerLok 60 G2
- Amphenol PowerLok 4.0 G1
- Amphenol ePower Lite
- TE AMP+ HVA280 Individually Shielded Cable Option
Want to check fitment with a connector not listed above? Contact us.
| Specification | Data |
|---|---|
| Brand | HUBER+SUHNER |
| # of Conductors | 1 |
| Armor Type | NONE |
| Color | ORANGE |
| Conductor Metal | BARE COPPER |
| Conductor Shielding Type | SHIELDED |
| Conductor Type | STRANDED |
| Gauge Size | 4MM2 |
| Insulation Material | RADOX 155 |
| Jacket Material | RADOX Elastomer S |
| Overall Shielding Type | TIN PLATED COPPER BRAID |
| Specification(s) | ISO 19642-9 CLASS D, ISO 6722-1 CLASS D |
| Stranding | 56x0.31 |
| Temperature | 50C |
| Voltage | 1/1.5kV |
