Description

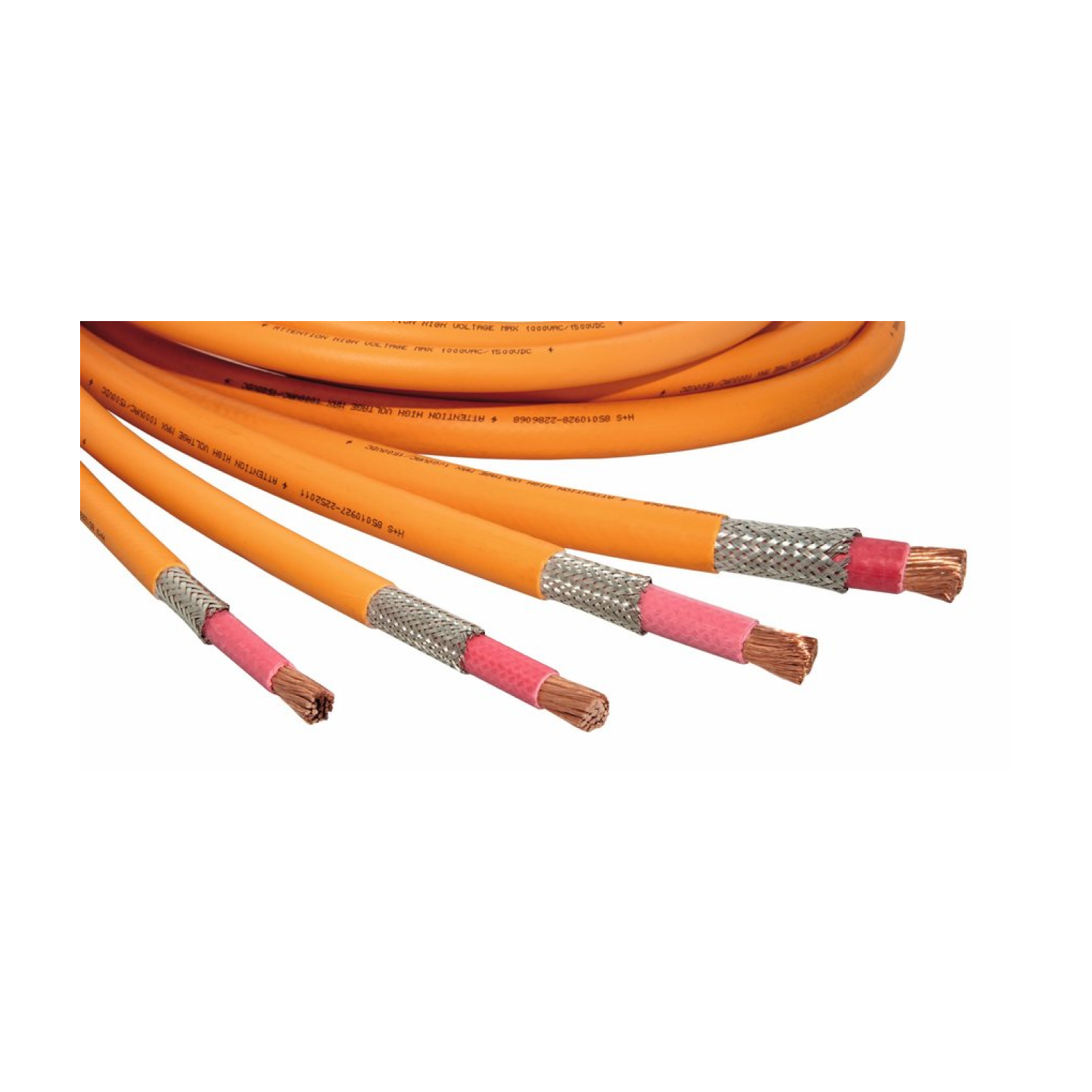

Huber+Suhner RADOX 155S has excellent resistance to high and low temperature, ozone, UV and weathering resistance, is resistant to pressure at high temperature, motor oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder iron resistant, easy to strip and process. All materials are free from lead, mercury, cadmium and chrome VI.
Features
- High abrasion resistance
- High temperature resistance
- UV and ozone resistance
- Flame-retardant
- Flexible and smooth
- Bend radius: 4x for static and 6x for dynamic applications
Datasheets
Specifications
- ISO 6722-1 class D / ISO 19642-9 class D
- 2000/53/EG (EU-directive on end of life vehicles) / 2011/65/EU (RoHS)
- FHLR91XC13X
- This 6mm2 cable is roughly 15% larger than 10AWG.
6mm2 Connector Fit
- Amphenol PowerLok 60 G2
- Amphenol Powerlok 4.0 G1
- Amphenol ePowerLite
Want to check fitment with a connector not listed above? Contact us.
6mm2 to AWG
6mm is closest to AWG 10. AWG 10 is actually 5.26mm2, so our 6mm2 represents a roughly 15% larger conductor. Be sure to take this into account when sizing connectors. Look up other sizes in our conversion chart.
| Specification | Data |
|---|---|
| Brand | HUBER+SUHNER |
| # of Conductors | 1 |
| Armor Type | NONE |
| Color | ORANGE |
| Conductor Metal | BARE COPPER |
| Conductor Shielding Type | SHIELDED |
| Conductor Type | STRANDED |
| Gauge Size | 6MM2 |
| Insulation Material | RADOX 155 |
| Jacket Material | RADOX Elastomer S |
| Overall Shielding Type | TIN PLATED COPPER BRAID |
| Specification(s) | ISO 19642-9 CLASS D, ISO 6722-1 CLASS D |
| Stranding | 84x0.31 |
| Temperature | 150C |
| Voltage | 1/1.5kV |
