Description

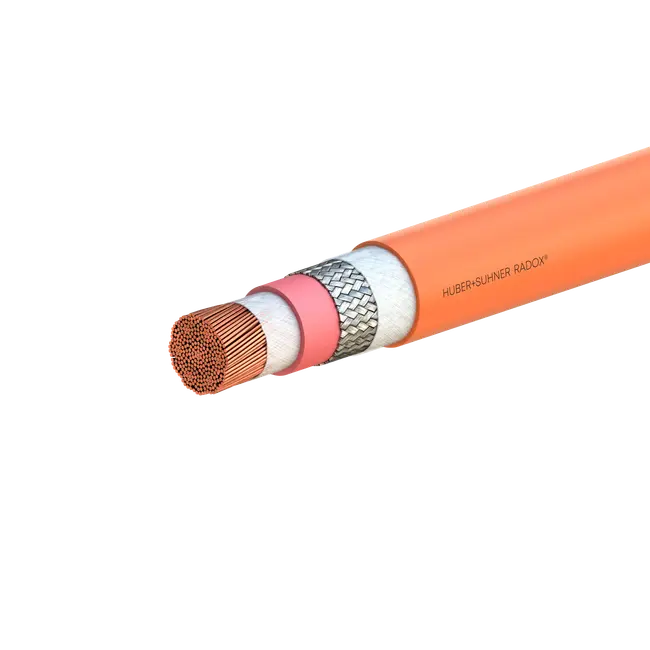

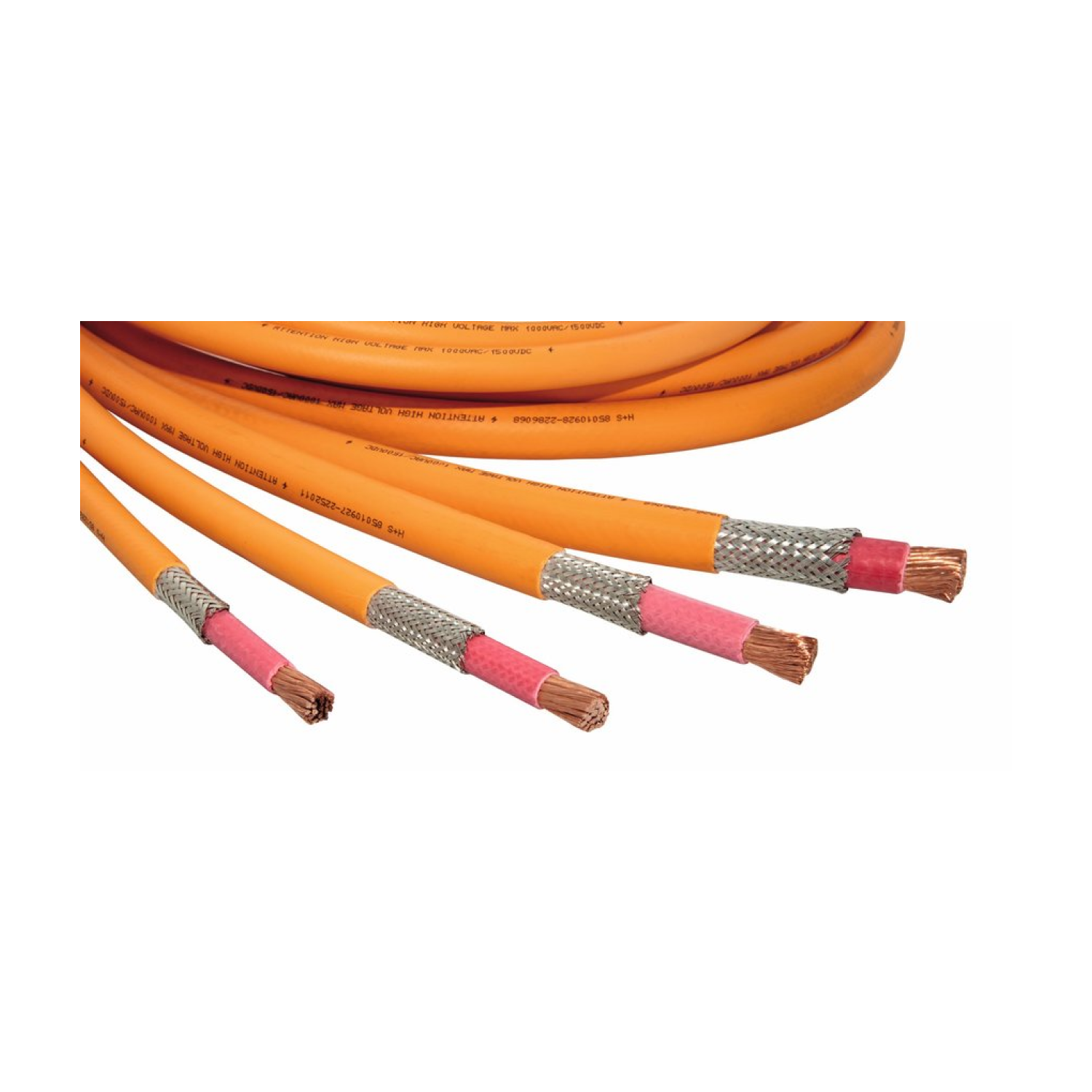

Huber+Suhner RADOX 155S has excellent resistance to high and low temperature, ozone, UV and weathering resistance, is resistant to pressure at high temperature, motor oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder iron resistant, easy to strip and process. All materials are free from lead, mercury, cadmium and chrome VI.
Features
- High abrasion resistance
- High temperature resistance
- UV and ozone resistance
- Flame-retardant
- Flexible and smooth
- Bend radius: 4x for static and 6x for dynamic applications
Datasheets
Specifications
- ISO 6722-1 class D / ISO 19642-9 class D
- 2000/53/EG (EU-directive on end of life vehicles) / 2011/65/EU (RoHS)
- FHLR4GC13X
- This 70mm2 cable is roughly 4% larger than 2/0AWG.
70mm2 Connector Fit
- Amphenol PowerLok 300 G1 "-5"
- Amphenol PowerLok 300 G2
- Amphenol PowerLok 500 G2
- TE AMP+ HVP 1100
- TE PowerTube HVP-HD1000
- TE PowerTube HVP-HD1400
Want to check fitment with a connector not listed above? Contact us.
70mm2 to AWG
70mm is closest to AWG 2/0. AWG 2/0 is actually 67.4mm2, so our 70mm2 represents a roughly 4% larger conductor. Be sure to take this into account when sizing connectors. Look up other sizes in our conversion chart.
| Specification | Data |
|---|---|
| Brand | HUBER+SUHNER |
| # of Conductors | 1 |
| Armor Type | NONE |
| Color | ORANGE |
| Conductor Metal | BARE COPPER |
| Conductor Shielding Type | SHIELDED |
| Conductor Type | STRANDED |
| Gauge Size | 70MM2 |
| Insulation Material | RADOX 155 |
| Jacket Material | RADOX Elastomer S |
| Overall Shielding Type | TIN PLATED COPPER BRAID |
| Specification(s) | ISO 19642-9 CLASS D, ISO 6722-1 CLASS D |
| Stranding | 360x0.51 |
| Temperature | 50C |
| Voltage | 1/1.5kV |
