Description

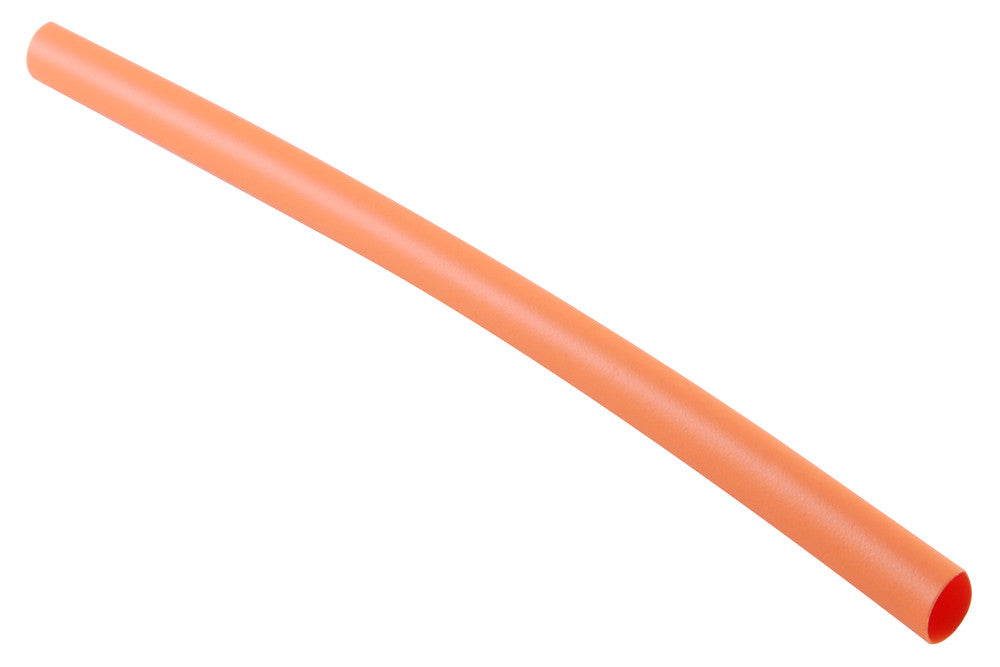

DUNBAR-3635W is a flexible, high shrink ratio, flame retardant heat shrinkable polyolefin tube with an adhesive lining which flows when heated. It is suitable to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to-cable transitions.
Features
- Shrink ratio: 67% or more in the radial direction +5%, -20% or less in the axial direction
- 90°C recovery temperature
- Continuous operating temperature: -55°C (-67°F) to 135°C (275°F)
- Flammability: UL VW-1, CSA OFT
- High resistance to abrasion, chemicals and oils
- Meets M23053/5 / AS23053/5 Specifications
- UL 224: VW-1, 600V, 125°C (File Number: E319303)
- RoHS & REACH Compliant

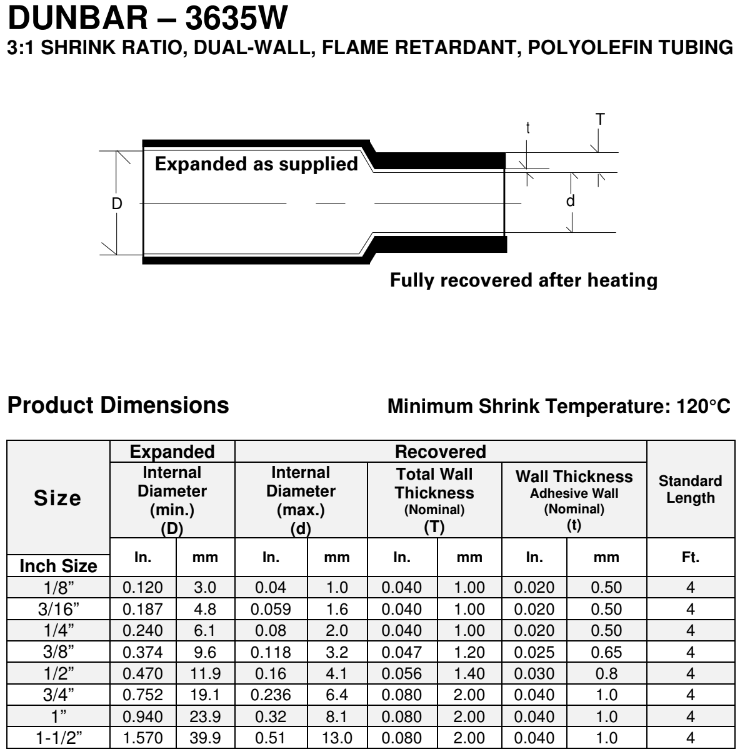

Datasheet
Shipping Note
All of our adhesive lined shrink tubing are sold in 4' maximum lengths. You may purchase as many feet as you need, but amounts greater than 4' will ship as multiple sticks.
