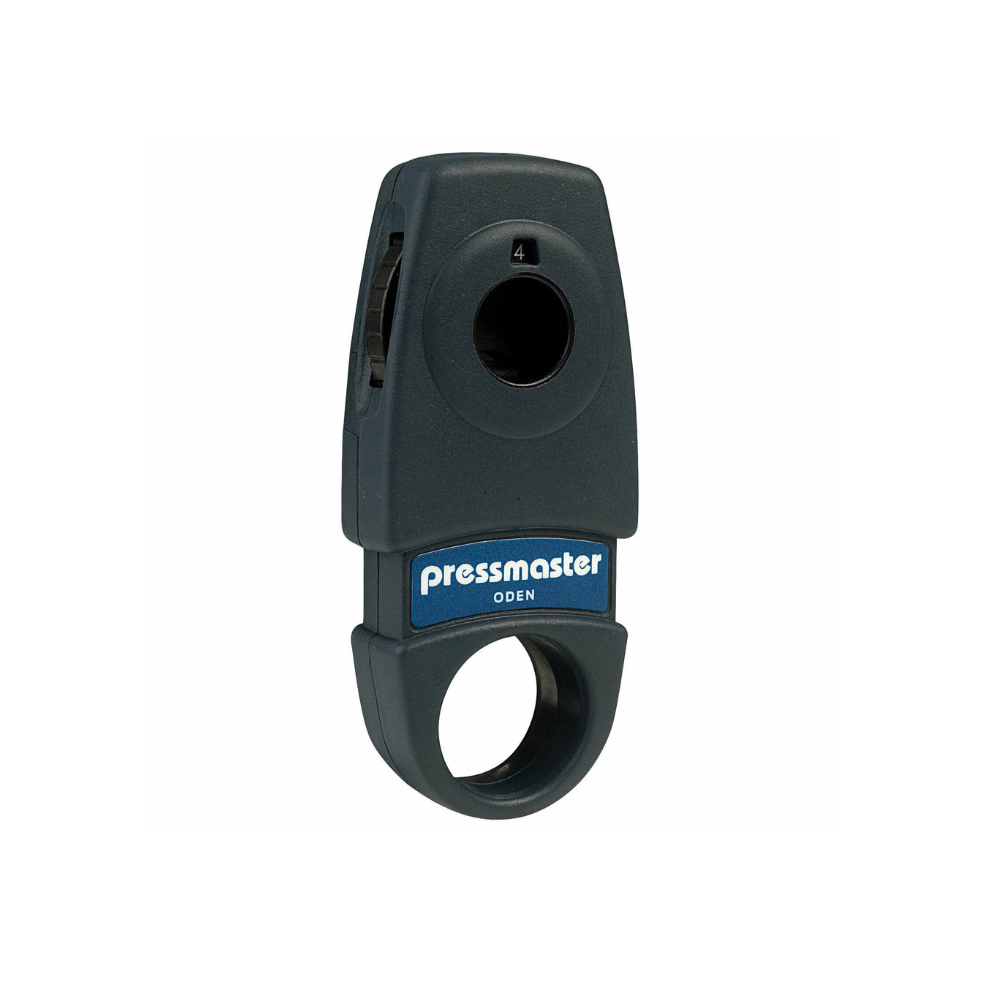

Oden is a precision stripping tool for removing the sheath from signal, telephone, audiovisual, instrumentation and data transmission copper and fiber optic cables. Up to Ø 11 mm/0.43 inch.
Features
- Precise: Fine adjustability and repeatability assured by 9-position adjustment wheel.
- Easy to use: Simply squeezing Oden together opens the stripping cavity – insert cable, rotate once, remove from cable and pull off the scrap insulation sheath.
- Safe: Smooth, rounded, pocketable and lightweight design. No open blade. Replacement blades encased within a plastic cassette.
- Flexible: Strips the sheath from most multi-core and fiber optic cables up to 11 mm/0.43 inch in diameter.
- Economic: Replacement blade cassettes available.
User Manual
Technical Specs
90.5 mm/3.56"
39.8 mm/1.57"
18.5 mm/0.73"
28 gr/0.06 lb
2.5-11 Ø mm / Ø 0.10''-0.43''
adjustable/up to 1 mm (insulation thickness)
adjustable/up to 0.04'' (insulation thickness)
Data / Signal
Adjustable precision stripping tool for signal, telephone, audiovisual, instrumentation and data transmission copper and fiber optic cables.
50,000
