Pricing and quantities per roll. We are unable to export this item outside the US.
Big Orange Cable loves big orange tape...

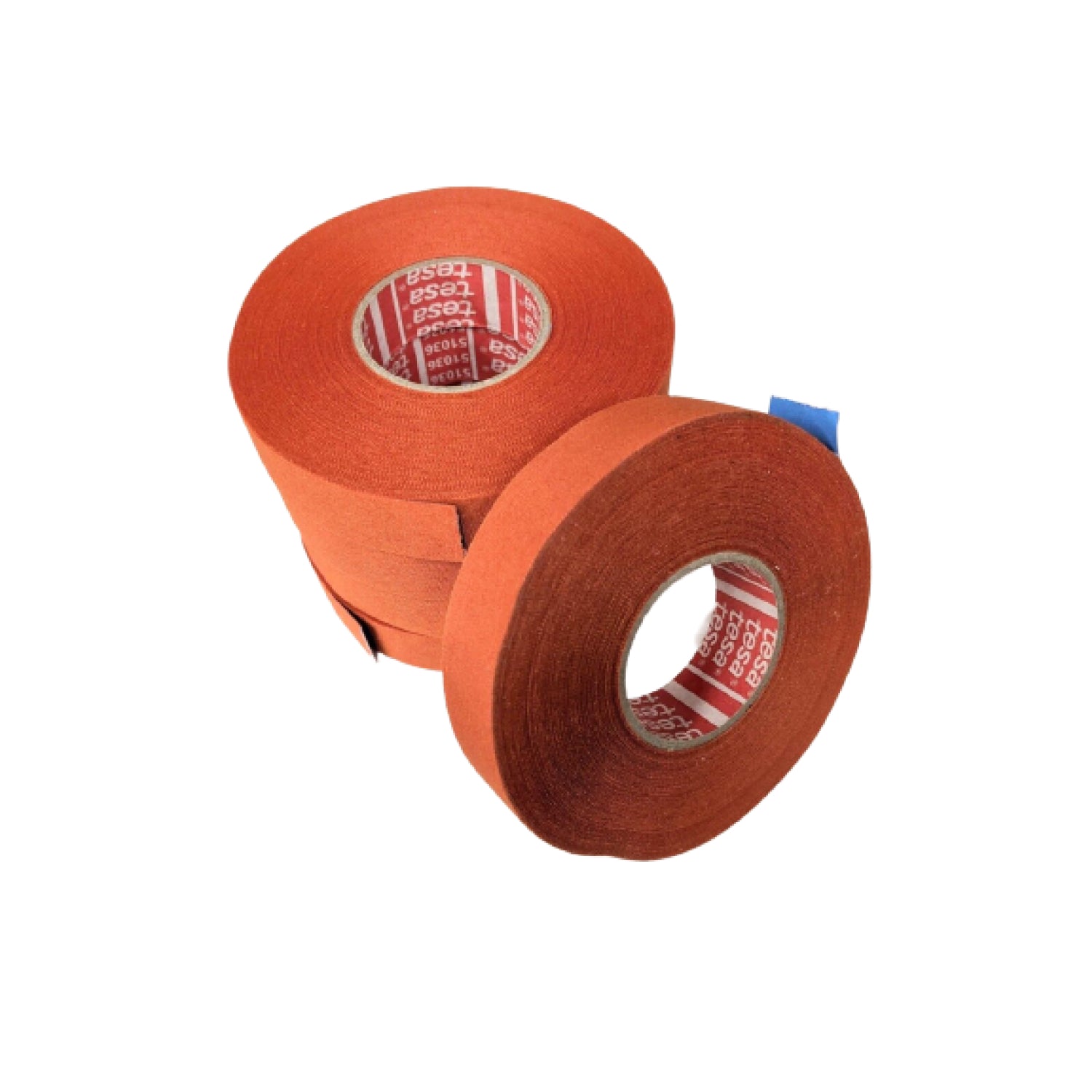

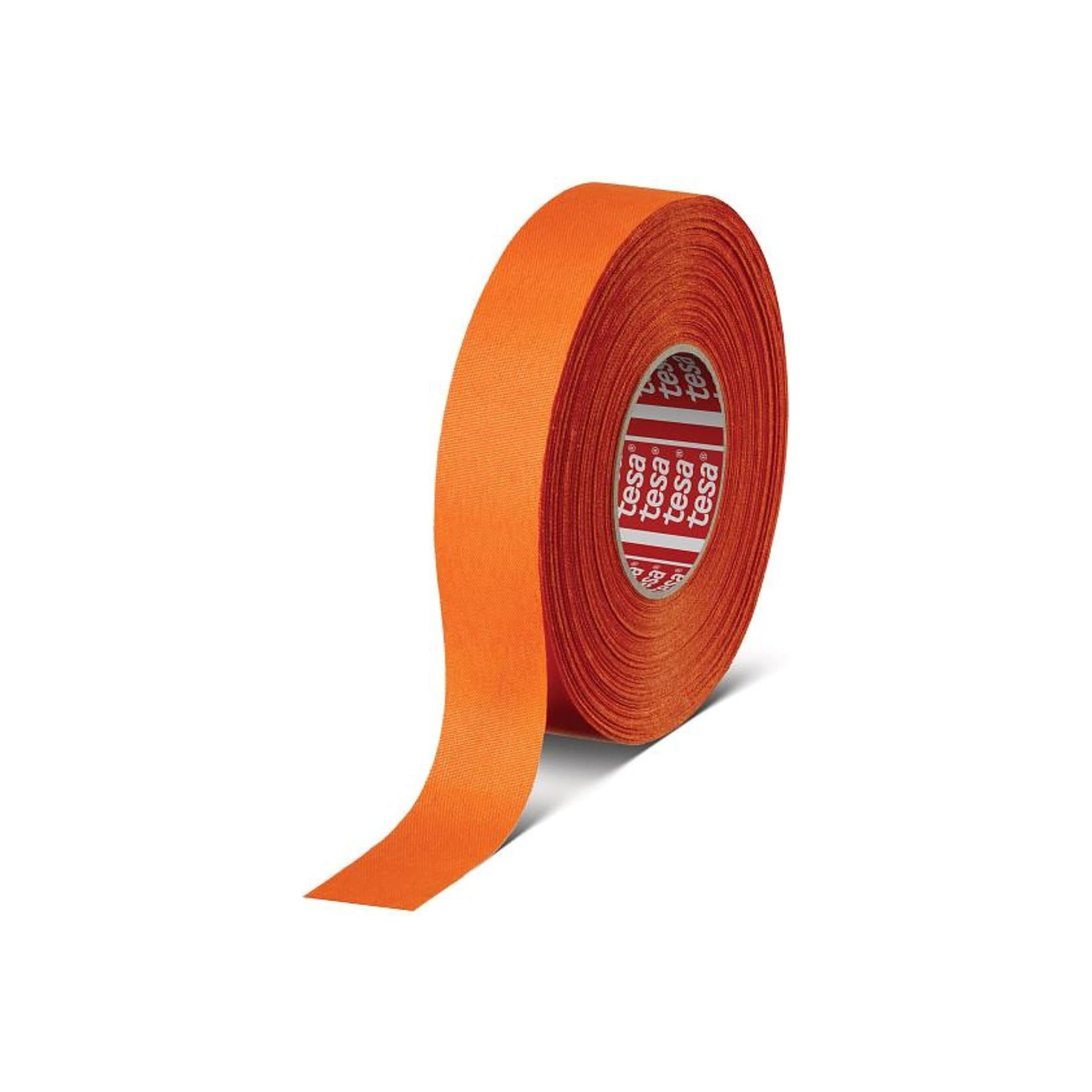

Tesa® 51036 is a flag-resistant PET cloth wire harness tape with a solvent-free, advanced acrylic adhesive. With the new adhesive formula, tesa® 51036 is highly resistant to flagging and ensures secure closure. tesa® 51036 provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with halogen-free cable jacketing materials (PE/PP) and guarantees enhanced durability.
Manufacturer part number: 51036-00041-00
TME Symbol: TESA-51036-19/25OR
Features
- High abrasion resistance
- High temperature resistance
- Flag-resistant
- Excellent cable compatibility
- Resistant to aging
- Can withstand environmental influences
- Can be used for manual and automatic application
- Flame-retardant
- Halogen-free
- Tear-resistant
- Constant unwind force
- Flexible and smooth
Datasheet
Product Construction
| Backing material | PET cloth |
| Type of adhesive | advanced acrylic |
| Total thickness | 260 µm |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Abrasion resistance (10mm mandrel) | Class D (acc. to LV312) |
| Abrasion resistance (5mm mandrel) | Class D (acc. to LV312) |
| Noise damping (LV312) | A |
| Temperature resistance max. | 150 °C |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width ≤ 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
Adhesion to Values
| Adhesion to Steel | 5 N/cm |
